HeatShrink Tubing 2:1 Kynar
Shrinkflex Kynar 2:1

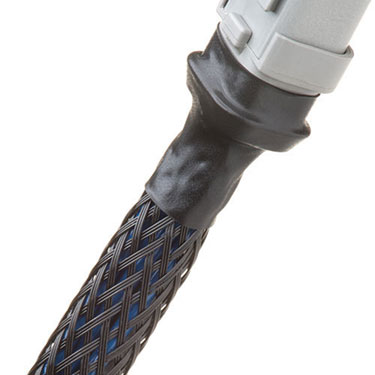

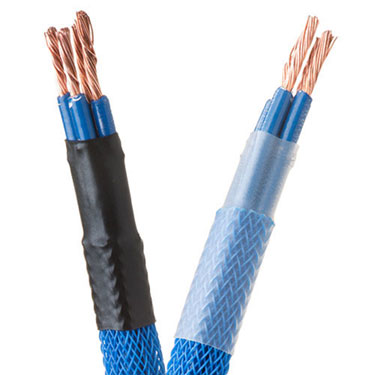

Kynar is a highly flame retardant tubing that is tough and abrasion resistant in mechanical environments. The product is recommended for applications as a strain relief for components such as soldered connections and splices.
Features
- Shrink Temp 175c
- Flame Retardant
- Mil-I-DTL-23053/8
DOWNLOAD SHRINKFLEX KYNAR 2:1 ADHESIVE SPECIFICATIONS PDF
Certifications:
|
Product Sizes |
|||||||
|
Size |
Part Number |
Unshrunk Diameter |
Shrunk Diameter |
Bulk Spool |
Shop Spool |
Lbs / 100' |
Price and Availability |
|
3/64" |
H2K0.05 |
1.2mm |
0.6mm |
200 |
25 |
0.03 |
PRICE AND AVAILIBILTY ON APPLICATION CONTACT US |
|
1/16" |
H2K0.06 |
1.6mm |
0.8mm |
200 |
25 |
0.05 |
|
|
3/32" |
H2K0.09 |
2.4mm |
1.2mm |
200 |
25 |
0.06 |
|
|
1/8" |
H2K0.13 |
3.2mm |
1.6mm |
200 |
25 |
0.07 |
|
|
3/16" |
H2K0.19 |
4.8mm |
2.4mm |
200 |
25 |
0.1 |
|
|
1/4" |
H2K0.25 |
6.4mm |
3.2mm |
200 |
25 |
0.15 |
|
|
3/8" |
H2K0.38 |
9.5mm |
4.7mm |
200 |
25 |
0.25 |
|
|
1/2" |
H2K0.50 |
12.7mm |
6.4mm |
100 |
25 |
0.3 |
|
|
3/4" |
H2K0.75 |
19.1mm |
9.5mm |
50 |
25 |
0.5 |
|
|
1" |
H2K1.00 |
25.6mm |
12.7mm |
50 |
25 |
0.8 |
|
