F360
F360
360° of Complete Coverage of Flexible, Semi-Rigid Braided Conduit

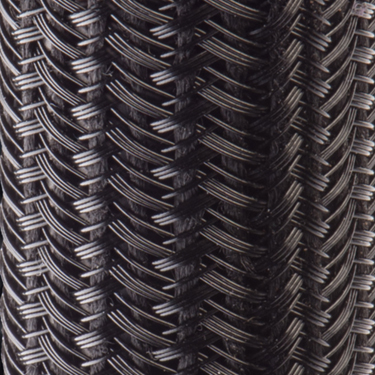

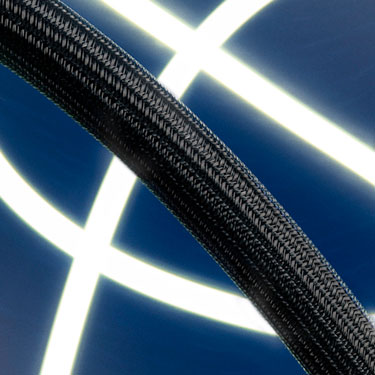

F360° is an innovative conduit designed to encase your wires with a flexible structure. F360’s circular shape is lightweight yet extremely strong. Utilizing our now famous F6 style triaxial braid technology, this new design will solve situations that need additional security and tamper resistance.
The full 360° degree enclosure makes a sturdy wire duct while still remaining breathable and light. Feeding wires through F360° is easy due to the ridged design. The beautifully finished bundle will maintain it’s shape and add serious protection for a very long life.
Features
• Soft and Quiet in High Vibration Uses
• Cut and Abrasion Resistant
• Halogen Free • Chemically Inert
• Retains Shape & Rigidity Throughout -70°C to 125°C Temp. Range
DOWNLOAD F360 SPECIFICATION PDF
Certifications:
|
Product Sizes |
|||||||
|
Size |
Part Number |
Wall Thickness Max |
Bulk Spool |
Shop Spool |
Box A |
Lbs / 100' |
Price and Availability |
|
3/8" |
F360.38BK |
.028" |
1,500' |
150' |
75' |
0.83 |
PRICE AND AVAILIBILITY ON APPLICATION |
|
1/2" |
F360.50BK |
.030" |
1,200' |
150' |
75' |
1.14 |
|
|
3/4" |
F360.75BK |
.030" |
500' |
100' |
50' |
1.53 |
|
|
1" |
F3601.00BK |
.035" |
400' |
100' |
50' |
1.67 |
|
|
1 1/2" |
F3601.50BK |
.036" |
150' |
75' |
25' |
3.9 |
|
