Clean Cut Heavy Duty
Abrasion Protection That Cuts Easily With Scissors

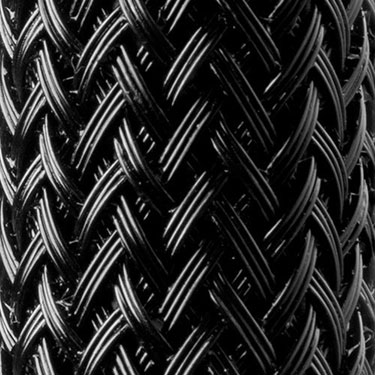

Clean Cut® HD (CCH) is perfect for heavy duty applications where there is no access to a hot knife. This dual monofilament sleeve is constructed with 10 mil polyethylene terepthalate (PET) and 15 mil nylon 6-6 polyamide monofilament yarns for superior strength. For an extra level of protection, a resin coating is applied to offer improved abrasion, cut, and fray resistance.

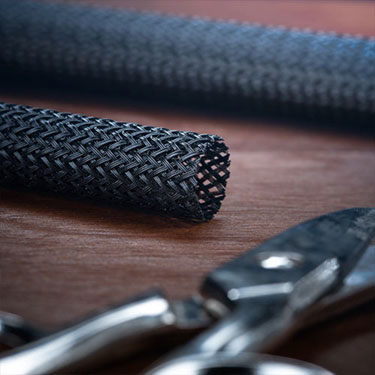

The open-weave construction expands to fit several application shapes and sizes, and also makes this sleeving highly flexible and resistant to trapping moisture, heat and humidity. Clean Cut® HD is commonly used in military, marine, and industrial applications where additional abrasion and moisture protection is needed.
Features
- 3,600 Cycles*
- Outstanding Protection Against Abrasion & Cut-Through
- Resists Gasoline, Engine Chemicals, & Cleaning Solvents
- Does Not Trap Heat Or Humidity

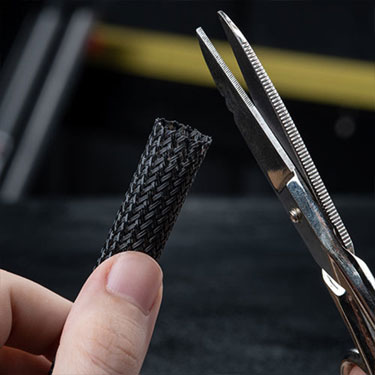

- Resists Fraying When Cut With Scissors
DOWNLOAD CLEAN CUT HEAVY DUTY SPECIFICATION PDF
Certifications:
|
Product Sizes |
|||||||
|
Size |
Part Number |
Expansion Max |
Expansion Min |
Bulk Spool |
Shop Spool |
Lbs / 100' |
Price and Availability |
|
1/8" |
CCH0.13BK |
1/4" |
1/8" |
1000' |
100' |
0.28 |
PRICE AND AVAILIBILITY ON APPLICATION |
|
1/4" |

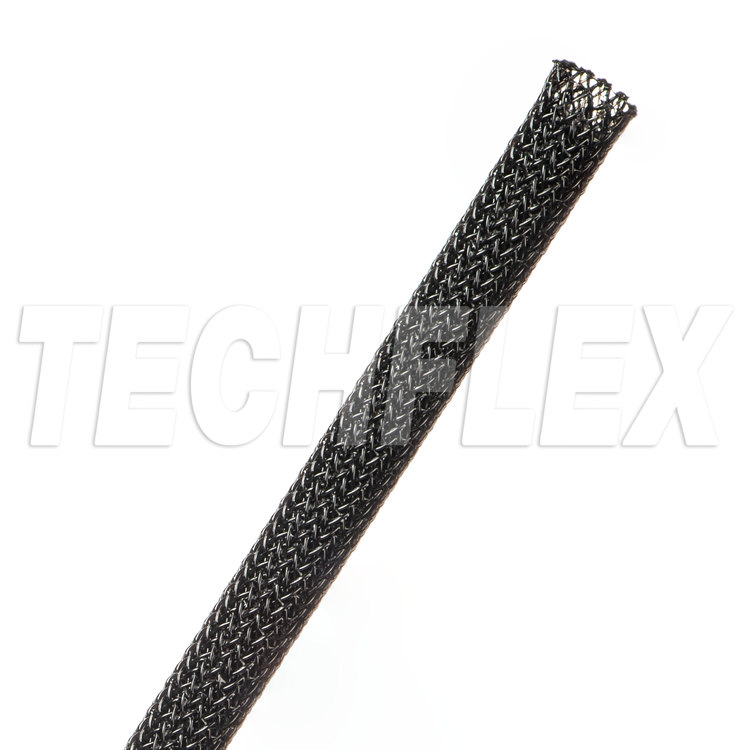

CCH0.25BK |
3/8" |
1/8" |
1000' |
100' |
0.42 |
|
|
3/8" |
CCH0.38BK |
1/2" |
1/4" |
500' |
100' |
0.8 |
|
|
1/2" |
CCH0.50BK |
3/4" |
3/8" |
500' |
100' |
1.06 |
|
|
3/4" |
CCH0.75BK |
1 1/4" |
3/4" |
250' |
75' |
1.6 |
|
|
1" |
CCH1.00BK |
1 1/2" |
1" |
250' |
50' |
1.71 |
|
|
1 1/4" |
CCH1.25BK |
2 1/4" |
1 1/4" |
250' |
50' |
2.02 |
|
|
1 1/2" |
CCH1.50BK |
2 1/2" |
1 1/2" |
200' |
50' |
2.7 |
|
|
2" |
CCH2.00BK |
3 1/4" |
2" |
100' |
25' |
3.36 |
|
