Heatshrink Tubing 3:1 Shielding
Shrinkflex Shielding 3:1

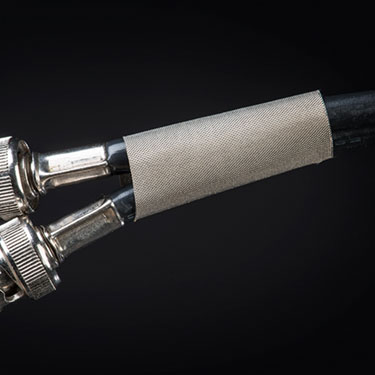

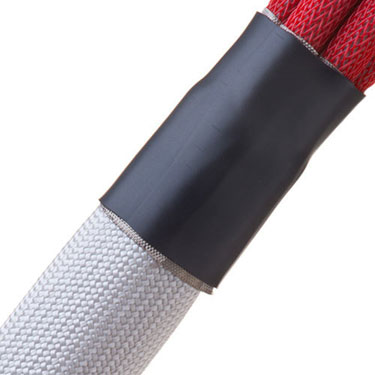

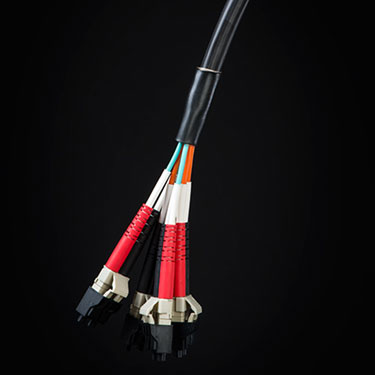

Shrinkflex 3:1 Shield heatshrink tubing is a unique dual wall combination of a polyolefin outer layer and an inner layer of conductive cloth with high frequency EMI shielding properties.
Shrinkflex Shield is flame retardant abrasion and chemical resistant, and is an ideal solution for for protecting wire and cable bundles while providing shielding from external interference.
Features
- Mil-I-DTL-23053/5
- Flame Retardant
- Excellent High Frequency EMI Shielding
- RoHS
- Easily Installs Over Connectors & Splices
|
Product Sizes |
|||||||
|
Size |
Part Number |
Unshrunk Diameter |
Shrunk Diameter |
Bulk Box Put Up/4' Pcs. |
Shop Box Put Up/4' Pcs. |
Lbs / 100' |
Price and Availability |
|
3/8" |
H3C0.38BK |
9.0mm |
3.0mm |
12 |
2 |
0.49 |
PRICE AND AVAILIBILTY ON APPLICATION CONTACT US |
|
1/2" |
H3C0.50BK |
12.0mm |
4.0mm |
12 |
2 |
0.62 |
|
|
3/4" |
H3C0.75BK |
18.0mm |
6.0mm |
12 |
2 |
0.9 |
|
|
1" |
H3C1.00BK |
24.0mm |
8.0mm |
12 |
2 |
1.35 |
|
|
1 1/2" |
H3C1.50BK |
40.0mm |
13.0mm |
12 |
2 |
2.12 |
|
|
2" |
H3C2.00BK |
50.0mm |
17.0mm |
12 |
2 |
2.94 |
|
