Heatshrink Tubing 2:1 Viton

Shrinkflex Viton 2:1

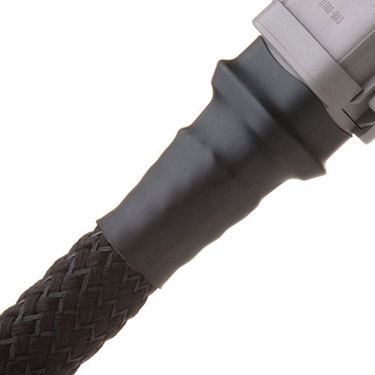

2:1 Viton is a rubber-like, highly fluid resistant, flame retardant flouro-elastomer heatshrink tubing with high solvent resistance. The product is recommended for applications where resistance to aggressive solvents and high temperatures is required. Bundling, harnessing and environmental protection within engine compartments is one such application.

Features

  • Shrink Temp. 175°C
  • Mil-I-DTL-23053/13
  • Flame Retardant
  • Resistant to Highly Corrosive Acids, Fluids, Fuels, & Solvents
  • High Operating Temp. 200°C for Extreme Working Conditions

DOWNLOAD SHRINKFLEX VITON 2:1 SPECIFICATION PDF
Certifications:


Logo csa Logo rohs Logo ul Vw 1 logoProp65 clean



Product Sizes

Size Part Number Unshrunk Diameter Shrunk Diameter Bulk Spool Shop Spool Lbs / 100' Price and Availability
1/8" H2V0.13BK 3.2mm 1.6mm 200' 25' 1.26

PRICE AND AVAILIBILITY ON APPLICATION

CONTACT US
3/16" H2V0.19BK 4.8mm 2.4mm 200' 25' 1.45
1/4" H2V0.25BK 6.4mm 3.2mm 200' 25' 1.68
3/8" H2V0.38BK 9.5mm 4.7mm 100' 25' 2.27
1/2" H2V0.50BK 12.7mm 6.4mm 100' 25' 2.29
5/8" H2V0.63BK 16.0mm 8.0mm 100' 25' 2.5
3/4" H2V0.75BK 19.1mm 9.5mm 100' 25' 4.14
7/8" H2V0.88BK 22.4mm 1.0mm 100' 25' 4.83
1" H2V1.00BK 25.4mm 12.7mm 100' 25' 5.73
1 1/4" H2V1.25BK 31.7mm 15.7mm 100' 25' 8.2
1 1/2" H2V1.50BK 38.1mm 19.1mm 100' 25' 8.8
2" H2V2.00BK 50.8mm 25.4mm 50' 25' 13.4
