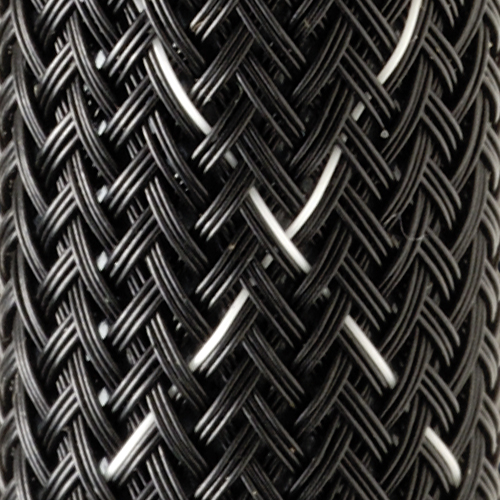

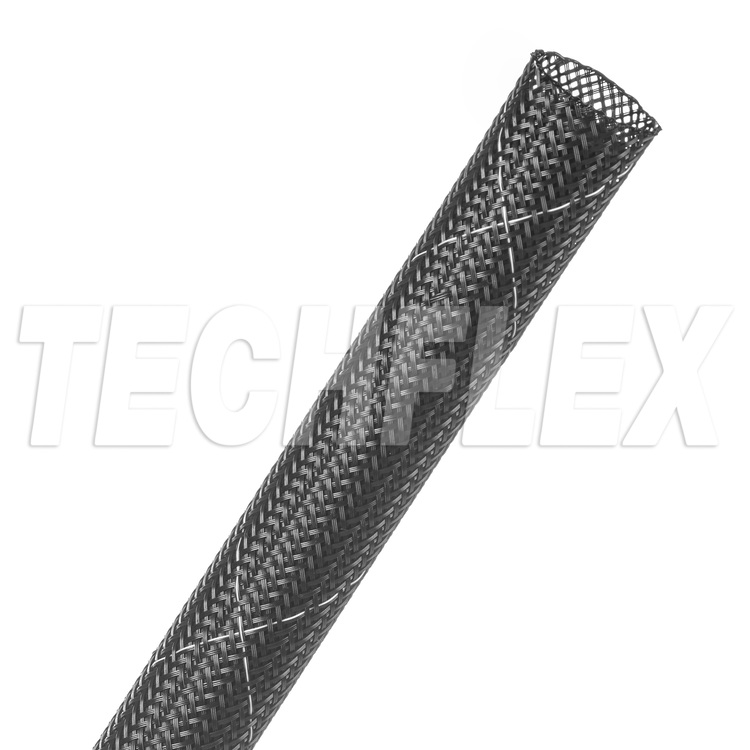

Clean Cut flame retardant expandable braided sleeve Techflex

Flame Retardant Fray Resistant Scissor Cut Braided Sleeving

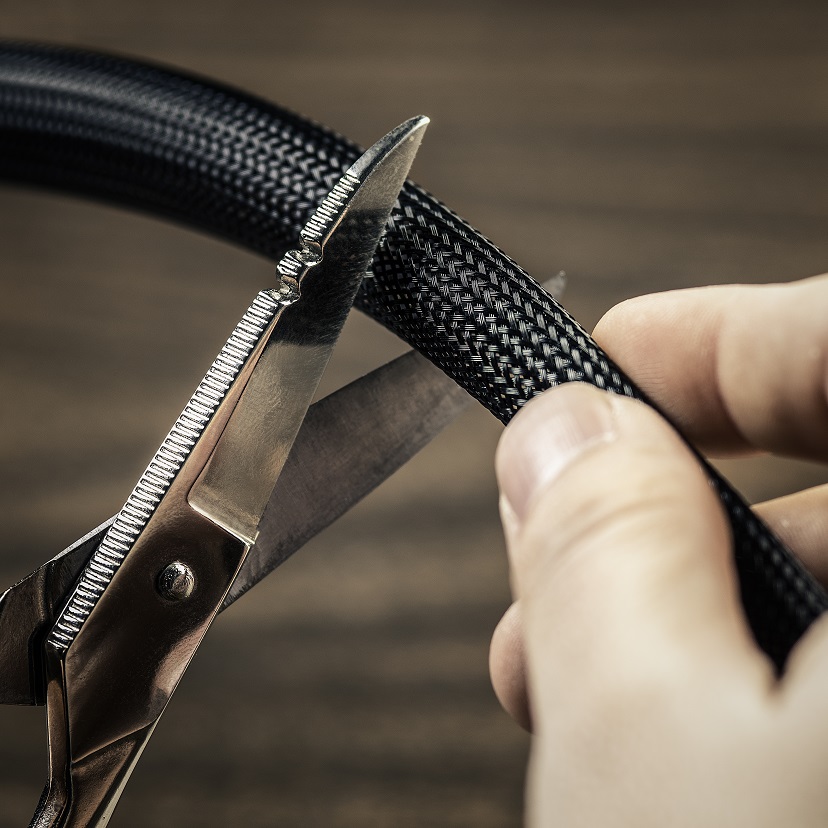

CLEAN CUT FLAME RETARDANT (CC) has all the same qualities that make standard CC so easy to cut and install, with the added advantage of a flame inhibitor to provide an extra level of safety in certain applications. Under normal conditions, Clean Cut FR will quickly self-extinguish and minimise flame spread and incidental damage to surrounding components. The combination of flame retardance, ease of installation and nearly complete coverage makes Clean Cut FR an ideal solution for many industrial and advanced engineering applications.

Features

  • Complies to HL2 according to the railway standard DIN EN 45545-2
  • VW-1, Mil-202 Approved
  • Cut and Abrasion Resistant
  • Expands for Ease of Installation
  • Halogen Free
  • Temperature Range -94°F to 257°F
  • Melt Temp. 482°F

Standard Colour: Black with White Tracer, White with Black Tracer

Nominal
Diameter
Part #  Expansion Range Bulk Spool  Mini Spool BULK PRICE AND AVAILABILITY ON APPLICATION
mm   Min. mm  Max. mm m m
3 CCF0.13 3 6 300 65  CONTACT US
6 CCF0.25 4 11 300  60
10 CCF0.38 5 16 150  38
13 CCF0.50 7 19 150  30
 19 CCF0.75  15  25  75  22
 25 CCF1.00   19  30  75  20
 32 CCF1.25  25  38  75  15
 38 CCF1.50   32  50  60  12



Flexible Technologies Limited - TECHFLEX NZ, are Techflex expandable braided sleeving distributors throughout New Zealand, Australia, the Pacific Region and other Worldwide locations
