Dura Flex Pro woven sleeving Techflex
Heavy Duty 80 Mil Thick Tubular Tightly Woven Nylon Design

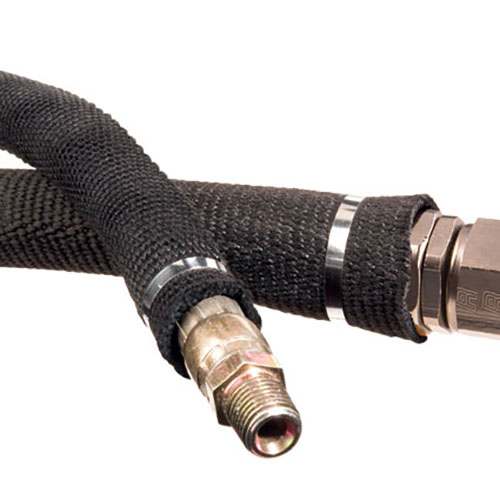

Dura-Flex Pro provides tough hose protection two ways. First, per the ISO 6945 specification, DP's unique 80 mil thick tubular weave design will withstand up to 13,000 abrasion cycles without any wear through at any location.

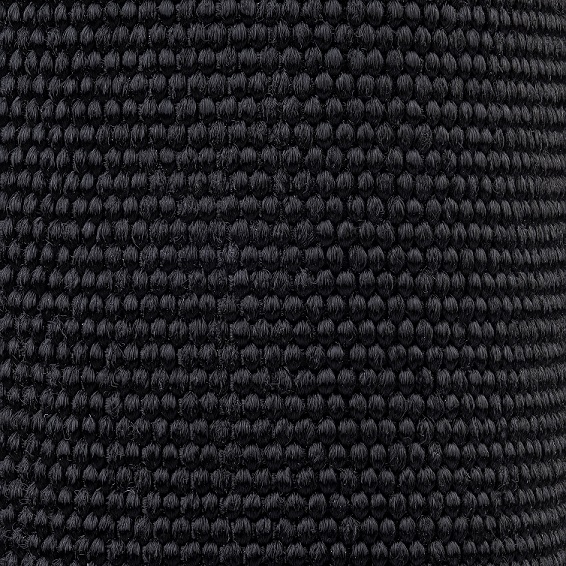

Additionally, the exceptionally smooth inner wall provides easy installation and minimizes any internal abrasion problems. The tightly woven Nylon® construction is extremely flexible and resists chemical and ultraviolet degradation.
Dura-Flex Pro cuts cleanly with a scissor, and installs quickly and easily. DP is perfect for industrial and construction applications where outstanding hose protection is needed.
Features
- 80 Mil Wall Thickness, 13,000 Cycles
- Professional Grade Construction
- Nylon Construction Resists UV, Chemicals, Vermin, Rot and Salt
- ISO 6945 Certified
- Smooth Inner Wall Prevents Internal Abrasion Damage
DOWNLOAD DURA-FLEX PRO SPECIFICATION PDF
Certifications:
| Nominal Diameter | Part # | Wall Thickness | Bulk Spool | Mini Spool | PRICE AND AVAILABILITY ON APPLICATION |
| mm | mm | m | m | ||
| 19 | DPN0.75 | 2.0 | 30 | 15 | CONTACT US |
| 23 | DPN0.93 | 2.0 | 30 | 15 | |
| 28 | DPN1.13 | 2.0 | 30 | 15 | |
| 32 | DPN1.25 | 2.0 | 30 | 15 | |
| 34 | DPN1.35 | 2.0 | 30 | 15 | |
| 36 | DPN1.43 | 2.0 | 30 | 15 | |
| 41 | DPN1.63 | 2.0 | 30 | 15 | |
| 46 | DPN1.81 | 2.0 | 30 | 15 | |
| 55 | DPN2.19 | 2.0 | 30 | 15 | |
| 66 | DPN2.63 | 2.0 | 30 | 15 | |
| 73 | DPN2.88 | 2.0 | 30 | 15 | |
| 79 | DPN3.13 | 2.0 | 15 | 7.5 | |
| 85 | DPN3.38 | 2.0 | 15 | 7.5 | |
| 92 | DPN3.63 | 2.0 | 15 | 7.5 | |
| 101 | DPN4.00 | 2.0 | 15 | 7.5 |
