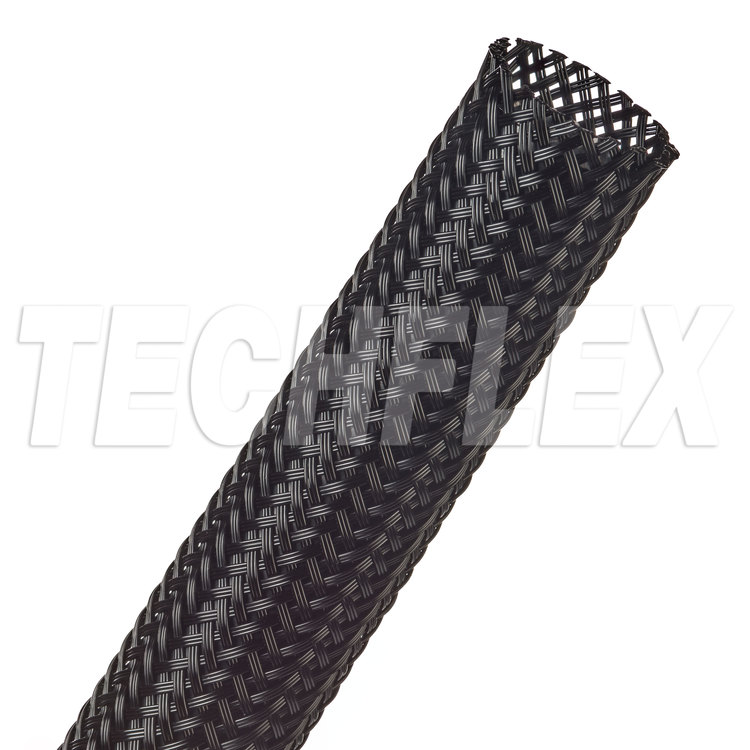

Flexo Super Duty Techflex

20 mil Nylon Super Duty Expandable Braided Sleeving

FLEXO SUPER DUTY (SD) is braided from 20mil Nylon 6-6 Polyamide monofilament. SUPER DUTY is a very flexible, extremely versatile heavy duty sleeve.Super Duty is an economic heavy duty sleeve, easy to use and cuts cleanly with a hot knife leaving a neat, sealed end.

Features

  • 2,500 Cycle Resistance
  • Extreme Abrasion and Cut Resistance
  • High Coverage
  • Resists Gasoline, UV, Solvents, Salt Water, and Chemicals

DOWNLOAD FLEXO SUPER DUTY SPECIFICATION PDF

Certifications:

Logo rohs Prop65 clean



Standard Colour: Black

Nominal Diameter

 Part #  Expansion Range Bulk Spool Mini Spool PRICE AND AVAILABILITY ON APPLICATION
    Min mm Max mm
6 SDN0.25 6 12  150 30 CONTACT US
12 SDN0.50 12 25  75 30
19 SDN0.75 19 31  75 15
25 SDN1.00 25 38 75 15
32 SDN1.25 32 50 75 15
44  SDN1.75 44 69 30  7.5
57 SDN2.25 57  76 30 7.5





Flexible Technologies Limited - TECHFLEX NZ, are Techflex expandable braided sleeving distributors throughout New Zealand, Australia, the Pacific Region and other Worldwide locations
